RM Series Tube Sheet Hole Reamer

RM Series Tube Sheet Hole Reamer

Specifications

Tube O. D. Reamer Size to
“TEMA” Specification		 Model No. Flute Length OAL Empty Shank Size
mm Inch mm inch   mm inch mm inch
9.53 3/a8 9.65 .380 RM-095/66
RM-095/101
RM-095/152		 66
101
152		 2.60
3.97
5.98		 146
181
232		 5.70
7.12
9.13		 1
12.70 1/2 12.83 .505 RM-127/76
RM-127/101
RM-127/152		 76
101
152		 2.99
3.97
5.98		 156
181
232		 6.14
7.12
9.13		 1
15.87 5/8 16.03 .631 RM-158/87
RM-158/152
RM-158/203		 87
152
203		 3.42
5.98
7.99		 187
252
303		 7.36
9.92
11.93		 2
16.00   16.16 .636 RM-160/87
RM-160/152
RM-160/203		 87
152
203		 3.42
5.98
7.99		 187
252
303		 7.36
9.92
11.93		 2
19.05 3/4 19.25 .758 RM-190/100
RM-190/152
RM-190/203		 100
152
203		 3.90
5.98
7.99		 200
252
303		 7.87
9.92
11.93		 2
20.00   20.20 .795 RM-200/100
RM-200/152
RM-200/203		 100
152
203		 3.90
5.98
7.99		 200
252
303		 7.87
9.92
11.93		 2



Download PDF

SGT Series Grooving Tool

SGT Series Grooving ToolFeatures:

  • Only light pressure required to cut precision grooves inside holes or cylinders.
  • Location and depth of groove easy to adjust.
  • Simple to change cutter for different groove shapes.
  • Changing of bushing and cutter allow one tool to cover a range of hole diameters.
  • The life of the cutter extendable by re sharpening.

Specifications

Tube O. D. Tool Model No. Pilot Nose / Bushing Model No. Tool Bits Model No.
mm Inch
10-13 0.40-0.51 SGT -102 SGT-102-PN SGT-102-TB
12.7 -16 0.50 -0.63 SGT-122 SGT-122-PN SGT-122-TB
16 -20 0.63 -0.79 SGT-162 SGT-162-PN SGT-162-TB
19 -32 0.75 -1.26 SGT-193 SGT-193-PN SGT-193-TB
30-52 1.18-2.05 SGT-303 SGT-303-PN SGT-303-TB
50 -78 1.97 -3.07 SGT-504 SGT-504-PN SGT-504-TB



Download PDF

ST Series Grooving Tool

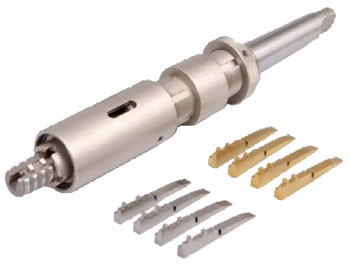

ST Series Grooving ToolFeatures:

  • High production tool
  • Ideal for use where 1 tool is needed per bore
  • Tool is ideally suited for CNC applications on account of one piece mandrel construction and short design.

Specifications

Tube O. D. Tool Model No. Spare Tool Bits
mm Inch   1/8 X 3/8 X 1/8
Spacing		 1/8 X 1/4 X 1/8
Spacing		 Special
Spacing.
9.53 3/8 ST-375-970 ST-3703 ST-3703-S ST-3703-SP
12.70 1/2 ST-500-1270 ST-5003 ST-5003-S ST-5003-SP
15.87 5/8 ST-625-1588 ST-6203 ST-6203-S ST-6203-SP
19.05 3/4 ST-750-1900 ST-7503 ST-7503-S ST-7503-SP
22.22 7/8 ST-875-2220 ST-7503 ST-7503-S ST-7503-SP
25.40 1 ST-1000-2540 ST-7503 ST-7503-S ST-7503-SP
28.57 1.1/8 ST-1125-2553 ST-7503 ST-7503-S ST-7503-SP
31.75 1.1/4 ST-1250-3175 ST-7503 ST-7503-S ST-7503-SP
34.92 1.3/8 ST-1375-3493 ST-7503 ST-7503-S ST-7503-SP
38.10 1.1/2 ST-1500-3810 ST-7503 ST-7503-S ST-7503-SP
41.27 1.5/8 ST-1625-4128 ST-7503 ST-7503-S ST-7503-SP
44.45 1.3/4 ST-1750-4445 ST-7503 ST-7503-S ST-7503-SP
47.62 1.7/8 ST-1875-4763 ST-7503 ST-7503-S ST-7503-SP
50.80 2 ST-2000-5080 ST-7503 ST-7503-S ST-7503-SP
57.15 2.1/4 ST-2250-5715 ST-7503 ST-7503-S ST-7503-SP
63.50 2.1/2 ST-2500-6350 ST-7503 ST-7503-S ST-7503-SP



Download PDF

NW Series Grooving Tool

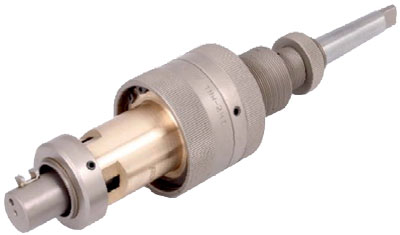

NW Series Grooving ToolFeatures:

  • Changing of pilot nose and cutter allows one tool to cover a range of hole diameters.
  • Simple to change cutter for different groove shapes.
  • Location and depth of cut easy to adjust.
  • Only light pressure required to cut precision grooves.
  • Ready to fit in CNC drill, lathes and boring machines.
  • The life of the cutter is extendable by re-sharpening.

Specifications

Bore RangeUnit Tool Model No. Pilot Nose Model No. Circular Form Cutter Model No. Tool Bit Holder Model No. Spare Tool Bit Model No.
mm Inch
9-32 3/8-1.1/4 1 NW-2 MT 1 NW-PN 1 NW-CF 1 NW-TBH 1 NW -TB
16-45 5/8-1.3/4 3 NW-3 MT 3 NW-PN 3 NW-CF 3 NW-TBH 3 NW -TB
19-48 3/4-1.7/8 4 NW-4 MT 4 NW-PN 4 NW-CF 4 NW-TBH 4 NW -TB
38-102 1.1/2-4 6 NW-5 MT 6 NW-PN 6 NW-CF 6 NW-TBH 6 NW -TB



Download PDF

Tool Bits

Standard Tool Bits

Chamfering Tool Bit 37 Chamfering Tool Bit 45 Facing Tool Bit
Chamfering Tool Bit 37.5 Chamfering Tool Bit 45° Facing Tool Bit



Optional Tool Bits

Counterboring Internal Bevelling External Bevelling J Groove
Counterboring Internal Bevelling External Bevelling J Groove



Insert Type Tool Bits

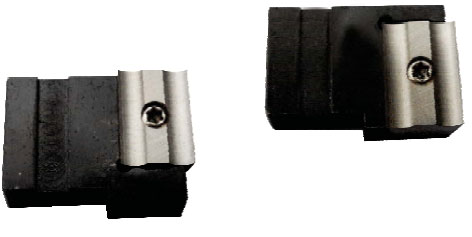

Chamfering Facing
Chamfering Facing



Download PDF
























Panel Master

Panel MasterThe SUBZERO Panel Master hold the outside dia of tube & apply strong clamping force to avoid vibration & chattering during operation

This rugged machine covered maximum range of 3″ OD tube & available with several cutters ..

Quick and secure clamping allows for maximum comfort, efficiency, safety, and ease of use.

Both the clamp and cutter heads are extremely durable and easy to change. The ratchet feed design allow the operator to comfortably feed the tool during bevelling or facing.

The Panel Master is suitable for small bore heavy wall tubes with a high percentage of chrome, stainless steel and other alloys. Standard and custom made blades are offered in a wide variety of angles and sizes.

Parameter Unit Panel Master – 3E Panel Master – 3P
Torque NM 140 100
Type   Electric Pneumatic
Air Consumption CFM   42.4
Air Pressure PSI   90
Voltage VOLTS 230
Min Inside Dia MM 19.0 19.0
Max Outside Dia MM 76.2 76.2
Tube Thickness MM 15.0 MAX 15.0 MAX
Feed Stroke MM 25.0 25.0
Material   CS & SS CS & SS
Standard Weight KG 10.0 10.0



Download PDF

Portable pipe bevelling machine – TBM 8000

Portable pipe bevelling TBM 8000Range: 49 – 203 mm ID.
Functions: Bevelling, Facing, Counter Boring
Materials: Any kind of steel.
Power: Pneumatic / Electric
Note: A powerful machine able to produce fast accurate weld preps on any schedule and material of pipe effortlessly.

Parameter Unit TBM 3000
EG P
Free Cutter RPM Variable Speed 10-125 40
Type   Electric Pneumatic
Power WATTS 1800 970
Air Consumption CFM   46
Operating Air PSI   90
Voltage V 230
Min Inside Dia MM 51 51
Max Outside Dia MM 220 202
Clamping Range (inside diameter) MM 51-203 51-203
Optional Clamping Range MM NA NA
Feed Stroke MM 40 40
Material   CS & SS CS & SS
Standard Weight KG 30.0 26.5

Download PDF

Portable Pipe bevelling machine TBM 4000

Portable Pipe 4000 TBNRange: 39 – 104 mm ID .
Functions: Bevelling, Facing, Counter Boring & Weld Removal.
Materials: Any kind of steel.
Power: Pneumatic/ Electric.
Note: A powerful machine able to produce fast accurate weld preps on any schedule and material of pipe effortlessly.





Parameter Unit TBM 3000
EG P
Free Cutter RPM Variable Speed 18-152 40
Type   Electric Pneumatic
Power WATTS 1800 970
Air Consumption CFM   46
Operating Air PSI   90
Voltage V 230
Min Inside Dia MM 39 39
Max Outside Dia MM 120 102
Clamping Range (inside diameter) MM 39-104 39-104
Optional Clamping Range MM NA NA
Feed Stroke MM 40 40
Material   CS & SS CS & SS
Standard Weight KG 23.0 21.0



Download PDF

Portable pipe bevelling machine – TBM 3000

Portable pipe machine TBM 3000Range: 28 – 76 mm ID
(Optional from 20 mm ID).
Functions: Bevelling, facing & weld removal. Materials: Any kind of steel.
Power: Pneumatic / Electric.
Note: Popular machine in boiler repair & Erection Work.



Parameter Unit TBM 3000
ER EG P
Free Cutter RPM 14 Variable Speed 50-144 156
Type   Electric Electric Pneumatic
Power WATTS 596 1100 619
Air Consumption CFM     42
Operating Air PSI     90
Voltage V 230 230
Min Inside Dia MM 28 28 28
Max Outside Dia MM 80 80 80
Clamping Range (inside diameter) MM 28-76 28-76 28-76
Optional Clamping Range MM 20-30 20-30 20-30
Feed Stroke MM 40 40 40
Material   CS & CS & SS CS &
Standard Weight KG 15 11.5 9



Download PDF

Portable pipe bevelling machine – TBM 1580

Portable pipeRange: 20 – 42 mm ID (Optional from 16 mm ID). Functions: Bevelling, facing, counterboring, weld removal. Materials: Any kind of Steel.
Power: Pneumatic/ Electric (220v)
Note: Light weight machine & best suitable for use in restricted area.



Parameter Unit TBM 1580
EB P
Free Cutter Speec RPM Variable Speed 50-144 156
Type   Electric Pneumatic
Power WATTS 306 336
Air Consumption CFM   16
Operating Air PSI   90
Voltage V 230
Min Inside Dia MM 20 20
Max Outside Dia MM 65 65
Clamping Range (inside diameter) MM 20-42 20-42
Optional Clamping Range MM 16-20 16-20
Feed Stroke MM 20 20
Material   CS&SS CS&SS
Standard Weight KG 6.5 5.5



Download PDF
