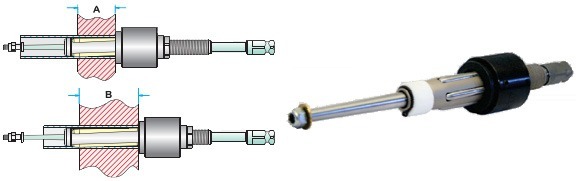

800-5 Series Condenser Tube Expander

800 5 series Condenser Tube

For Tubes Internal Diameter
From (12.9 mm) .509″ To (36.7 mm) 1.44″

Tube Expanders Fitted With Roller Length	For Tube Sheet Adjustable Range
Tube Expanders Fitted With Roller Length	Minimum A	Maximum B
(38.1mm) 1.1/2″	(12.7mm) 1/2″	(38.1mm) 1.1/2″
(57.1mm) 2.1/4″	(31.7mm) 1.1/4″	(57.1mm) 2.1/4″

Use : Highly recommended for use on thin walled tubes (19 thru 22 gage walls) of Stainless Steel. Titanium, Incoloy and other exotic materials.
Advantages : Gives a more concentric and even expansion when expanding thin walled tubes vs. a conventional 3 roll expander and reduces tube spring back effect.

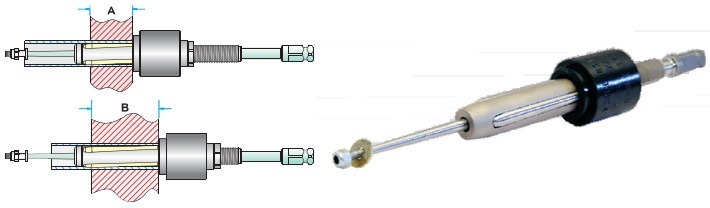

800 series Condenser Tube

For Tubes Internal Diameter
From (3.8 mm) .152″ To (8.4 mm) .331″

Tube Expanders Fitted With Roller Length	For Tube Sheet Adjustable Range
Tube Expanders Fitted With Roller Length	Minimum A	Maximum B
(38.1mm) 1.1/2″	(12.7mm) 1/2″	(38.1mm) 1.1/2″
(57.1mm) 2.1/4″	(31.7mm) 1.1/4″	(57.7mm) 2.1/4″

Use : Most popular tool worldwide for use on heat exchangers and condensers with tubes of 1/2″ – 1.1/2″ O.D.

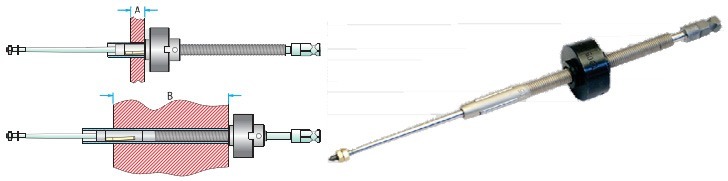

1300 series Condenser Tube

For Tubes Internal Diameter
From (5.8 mm) .231″ To (8.4 mm) .331″

Tube Expanders Fitted With Roller Length	For Tube Sheet Adjustable Range
Tube Expanders Fitted With Roller Length	Minimum A	Maximum B
(19.05mm) 3/4″	(19.05mm) 3/4″	(76.20mm) 3″
(31.75mm) 1.1/4″	(31.75mm) 1.1/4″	(88.90mm) 3.1/2″

Use : Oil Coolers, Radiators and other apparatus with small diameter tubes and thick tube sheets.

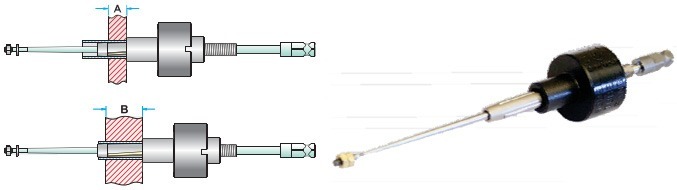

900 series Condenser Tube

For Tubes Internal Diameter
From (3.8 mm) .152″ To (8.4 mm) .331″

Tube Expanders Fitted With Roller Length	For Tube Sheet Adjustable Range
Tube Expanders Fitted With Roller Length	Minimum A	Maximum B
(19.05mm) 3/4″	(6.35mm) 1/4″	(19.05mm) 3/4″
(31.75mm) 1.1/4″	(19.05mm) 3/4″	(31.75mm) 1.1/4″

Use : Oil Coolers, Radiators and other apparatus with small diameter tubes.
This tool has been the workhouse for several years for use on the small diameter tubes.

AN series Condenser Tube

For Tubes Internal Diameter
From (3.8 mm) .152″ To (8.4 mm) .331″

Tube Expanders Fitted With Roller Length	For Tube Sheet Adjustable Range
Tube Expanders Fitted With Roller Length	Minimum A	Maximum B
(25.4mm) 1″	(6.35mm) 1/4″	(25.4mm) 1″

Use : Oil Coolers, Radiators and other apparatus with small diameter tubes.
Advantages : Captive mandrel – eliminates nut on mandrel tip which prevents scratching of tube I.D.
Increased feed angle makes it the fastest operating toll on the market, ideal for high production environments.
