Pneumatic Tube Expansion Drive

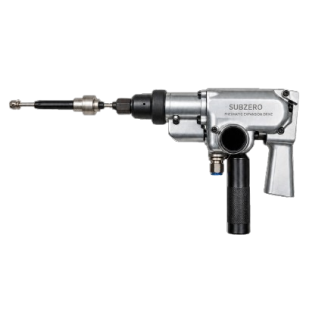

Pistol Type Rolling Motor for Heat Exchanger
Suitable for up to 1.1/4″ OD Tube
Our Pistol Pneumatic rolling motors are ergonomically designed for accurate and fast completion of tube to tube sheet joint for Heat exchanger and condensers. The lightweight aluminum body reduce operator fatigue and give increased efficiency of the operator. The rolling motor automatically stops at preset setting to give uniform tube expansion joint.

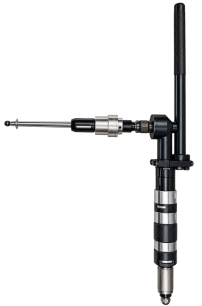

Right-Angle Type Rolling Motor for Boilers
Suitable for up to 4″ OD Tube
Our right-angle Pneumatic rolling motors are specifically designed for Boiler Tube Expansion in steam I Mud Drum, fire tube boiler and other
similar equipment. The components of these high torque motors are manufactured with alloy steel which are hardened and tempered to give high strength, durability & long life. The rolling motor automatically stops at preset setting to give uniform tube expansion joint.
Features
Safe compared to any conventional tube expansion method
No electrical so no fire hazard
Torque controlled to ensure repeatability
Highest power to weight ratio
Easy to adjust the torque setting
Pistol Type Rolling Motor for Heat Exchanger
| Model | Tube OD | RPM | Max Torque (NM) | Chuck Size | Air Consumption | Weight (KG) | |
|---|---|---|---|---|---|---|---|
| Litre/min | CFM | ||||||
| TYPHOON -58 | up to 5/8" | 1250 | 12.2 | 1/4" | 1700 | 60 | 5.0 |
| TYPHOON -100 | up to 1" | 600 | 21.8 | 3/8" & 1/2" | 1700 | 60 | 5.0 |
| TYPHOON -114 | up to 1.1/4" | 400 | 36.0 | 3/8" & 1/2" | 1700 | 60 | 5.0 |
Right-Angle Type Rolling Motor for Boilers
| Model | Tube OD | RPM | Max Torque (NM) | Chuck Size | Air Consumption | Weight (KG) | |
|---|---|---|---|---|---|---|---|
| Litre/min | CFM | ||||||
| TYPHOON -200 | up to 2" | 190 | 190 | 1/2" & 3/4" | 2000 | 70 | 8.5 |
| TYPHOON -300 | up to 3" | 90 | 410 | 3/4" & 1" | 2000 | 70 | 9.0 |
| TYPHOON -400 | up to 4" | 50 | 490 | 3/4" & 1" | 2000 | 70 | 10.0 |
