Combination Beading Expanders
| Previously | Now | |
| Tools Required |
|
|
| Operating Steps |
|
|
| Operating Fatigue | High…Largely due to air hammer vaibration and noise | Reduced significantly no air hammer for beading…no rerolling |
Boiler Tube Expander

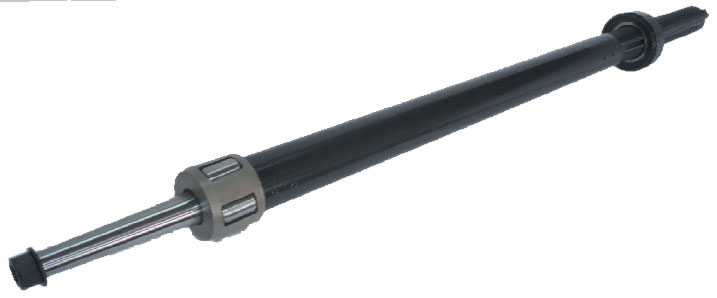

CSB Series Expander
- ‘5 Roll’ design is used primarily for rolling thin walled tubes in sugar mill juice heaters, pans.
- ‘5 Roll’ give you a more concentric, uniform expansion vs. a ‘3 roll’ expander in thin tubes and reduces tube ‘spring back’ effect
- Use – For buttom plate tubes expansion in pans, juice heaters in sugar mills.

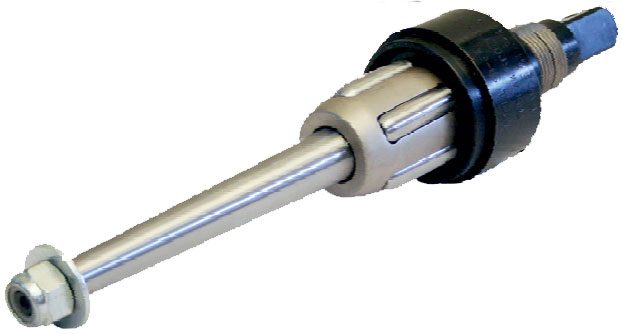

SB Series Boiler Tuber Expander
- ‘5 Roll’ design is used primarily for rolling thin walled tubes in sugar mill juice heaters, pans.
- ‘5 Roll’ give you a more concentric, uniform expansion vs. a ‘3 roll’ expander in thin tubes and reduces tube ‘spring back’ effect
- Use – For top plate tubes expansion in pans, juice heaters in sugar mills.
8012 Series Boiler Tube Expander
For tubes internal diameter
From (36.1 mm) 1.420″ to (123.7 mm) 4.870″
| Tube Expanders Fitted With Roller Length | For Tube Sheet Adjustable Range | ||
| Minimum A | Maximum B | ||
| 2.1/4″ (57.1mm) | STD Reach | (12.7mm) 1/2″ | (101.4mm) 4″ |
| -6″ Reach | (152.4mm) 6″ | ||
| -8″ Reach | (203.2mm) 8″ | ||
- Use: To expand tubes in Air Heaters, Boilers and Refinery still tubes. Can be used to expand thick tube sheets (upto 8″)
- For Larger Size ‘8012’ series expanders, please contact us
114 Series Boiler Tube Expander
- Available for 2″ to 4.1/2 O.D
- Self feeding
- 2 flare & 4 plain Rolls
- Available for tube sheet 1/2″ (12.7) to 2.5/8″ (66)
- Self retained rolls in cage
- Overlapping rolls prevents riding of tubes
- Use for parallel flaring expansion of boiler tube in single operation
X – Denotes roller code for tube sheet thickness range
| X | Tube sheet thick range | Total roller length (A) | Effective roller length (B) | ||
| Inch | mm | Inch | mm | ||
| 2 | 1/2″ to 7/8″ (12.7 to 22.22mm) | 2.1/4″ | 57.1 | 1.7/8″ | 47.6 |
| 3 | 3/4″ 1.1/8″ (19.05 to 28.58mm) | 2.1/2″ | 63.4 | 2.5/32″ | 54.8 |
| 4 | 1.1/8 to 1.5/8″ (28.58to 41.28mm) | 3″ | 76.2 | 2.5/8″ | 66.7 |
| 5 | 1.5/8″ to 2.1/8″ (41.28 to 53.98mm) | 3.1/2″ | 88.8 | 3.5/32″ | 80.1 |
| 6 | 2.1/8″ to 2.5/8″ (53.98 to 66.68mm) | 4″ | 101.5 | 3.5/8″ | 92.0 |
AB Series Boiler Tube Expander
- Similar ‘A’ Series expanders
- Bearing reduces frictional build up for smoother expanding cycles
- Bearing increases useful life of tool
- Use – High productivity tool used where flaring of tubes is not needed
X – Denotes roller code for tube sheet thickness range
| X | Tube sheet thick range | Total roller length (A) | Effective roller length (B) | ||
| Inch | mm | Inch | mm | ||
| 2 | 1/2″ to 7/8″ (12.7 to 22.22mm) | 2.1/4″ | 57.1 | 1.1/2″ | 38.1 |
| 3 | 3/4″ 1.1/8″ (19.05 to 28.58mm) | 2.1/2″ | 63.4 | 1.3/4″ | 44.5 |
| 4 | 1.1/8 to 1.5/8″ (28.58to 41.28mm) | 3″ | 76.2 | 2.1/4″ | 57.2 |
| 5 | 1.5/8″ to 2.1/8″ (41.28 to 53.98mm) | 3.1/2″ | 88.8 | 2.3/4″ | 69.9 |
| 6 | 2.1/8″ to 2.5/8″ (53.98 to 66.68mm) | 4″ | 101.5 | 3.1/4″ | 82.6 |
AF-3 Boiler Tube Expander
- Available for 7/8” to 4.1/2” O.D.
- Self Feeding
- 3 plain Rolls & flare rolls
- Available for tube sheet 1/2″(12.7) to 2.5/8″ (66.7)
- Overlapping flare rolls avoid ridging of tube
- Use for parallel flaring expansion of boiler tubes of boiler tube in single operation
X – Denotes roller code for tube sheet thickness range
| X | Tube sheet thick range | Total roller length (A) | Effective roller length (B) | ||
| Inch | mm | Inch | mm | ||
| 2 | 1/2″ to 7/8″ (12.7 to 22.22mm) | 1.1/8″ | 28.5 | 7/8″ | 22.2 |
| 3 | 3/4″ 1.1/8″ (19.05 to 28.58mm) | 1.3/8″ | 39.4 | 1.1/8″ | 28.5 |
| 4 | 1.1/8 to 1.5/8″ (25.4 to 41.2mm) | 1.7/8″ | 47.6 | 1.5/8″ | 41.2 |
| 5 | 1.5/8″ to 2.1/8″ (38.1 to 53.9mm) | 2.3/8″ | 60.3 | 2.1/8″ | 53.9 |
| 6 | 2.1/8″ to 2.5/8″ (50.8 to 66.7mm) | 2.7/8″ | 73.0 | 2.5/8″ | 66.7 |
A Series Boiler Tube Expander
- Available for 7/8” to 4.1/2” O.D.
- Self Feeding
- 3 plain Rolls
- Available for tube sheet 1/2″(12.7) to 2.5/8″ (66.7)
- Available in short series, Drum series & Header series mandrel
- Use for parallel expansion of boiler tubes
X – Denotes roller code for tube sheet thickness range
| X | Tube sheet thick range | Total roller length (A) | Effective roller length (B) | ||
| Inch | mm | Inch | mm | ||
| 2 | 1/2″ to 7/8″ (12.7 to 22.22mm) | 2.1/4″ | 57.1 | 1.1/2″ | 38.1 |
| 3 | 3/4″ 1.1/8″ (19.05 to 28.58mm) | 2.1/2″ | 63.4 | 1.3/4″ | 44.5 |
| 4 | 1.1/8 to 1.5/8″ (28.58 to 41.28mm) | 3″ | 76.2 | 2.1/4″ | 57.2 |
| 5 | 1.5/8″ to 2.1/8″ (41.28 to 53.98mm) | 3.1/2″ | 88.8 | 2.3/4″ | 68.9 |
| 6 | 2.1/8″ to 2.5/8″ (53.98 to 66.68mm) | 4″ | 101.5 | 3.1/4″ | 82.6 |
